Using theHarvester with Netlas

theHarvester is a free, open-source tool designed for gathering open-source intelligence (OSINT) from various online sources. Its functionality has been significantly enhanced with the integration of the Netlas API. This combination allows users to collect not only general information about a company but also detailed data about its network infrastructure.

In this article, we’ll explore the technical aspects of using theHarvester, including installation steps, key commands, and practical examples when used in conjunction with Netlas.

Installation

Installing the tool is quite straightforward. There are four main methods:

• Option 1: Kali
• Option 2: Virtualenv
• Option 3: Docker
• Option 4: From Source

Each installation method is thoroughly detailed on theHarvester GitHub page: Installation Guide. For this article, we will use one of the latest versions of Kali Linux, which comes with theHarvester pre-installed.

To check if theHarvester is installed on your system, run the following command:

theHarvester -h

If the tool is installed, this command will display the usage help documentation for theHarvester. The next picture shows the result of the command.

What is Netlas API?

The Netlas API is an application programming interface that allows other tools and applications, such as theHarvester, to interact with Netlas’s extensive data collections. These datasets contain information on millions of network devices worldwide.

What is stored in Netlas Database?

• IP Addresses: Ranges of IP addresses belonging to various organizations.
• Hosts: Information about network-connected hosts (e.g., operating systems, open ports).
• DNS Records: DNS records associated with domains and IP addresses.
• Whois Data: Whois information containing details about domain owners and their contact information.
• Certificates: Information about SSL/TLS certificates linked to domains.

Connecting the Netlas API to theHarvester

To connect the Netlas API to theHarvester, follow these steps:

1. Obtain a Netlas API Key:

   • Register: Sign up on the Netlas platform.
   • Retrieve Your Key: Go to your profile and copy the API key.

2. Configuring theHarvester

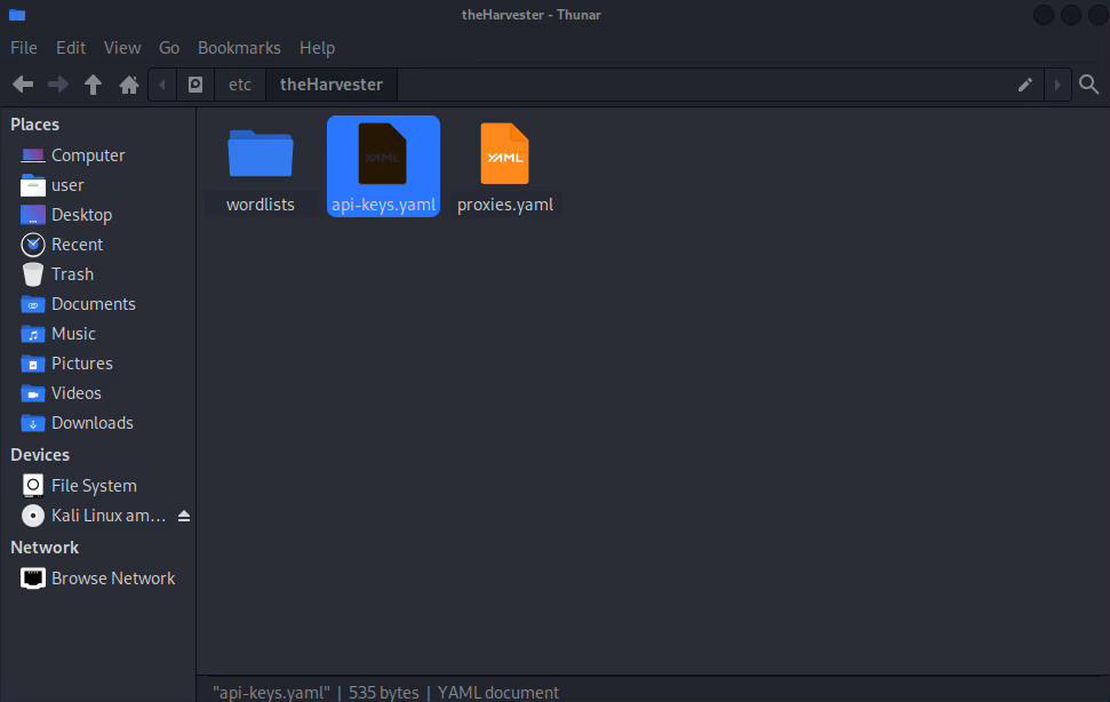

   To set up the Netlas API key, locate the api-keys.yaml configuration file. If theHarvester was installed via setup.py or is part of Kali Linux, this file is typically located in /usr/local/etc/theHarvester/. If you cloned the repository from GitHub, it will be in the root directory.

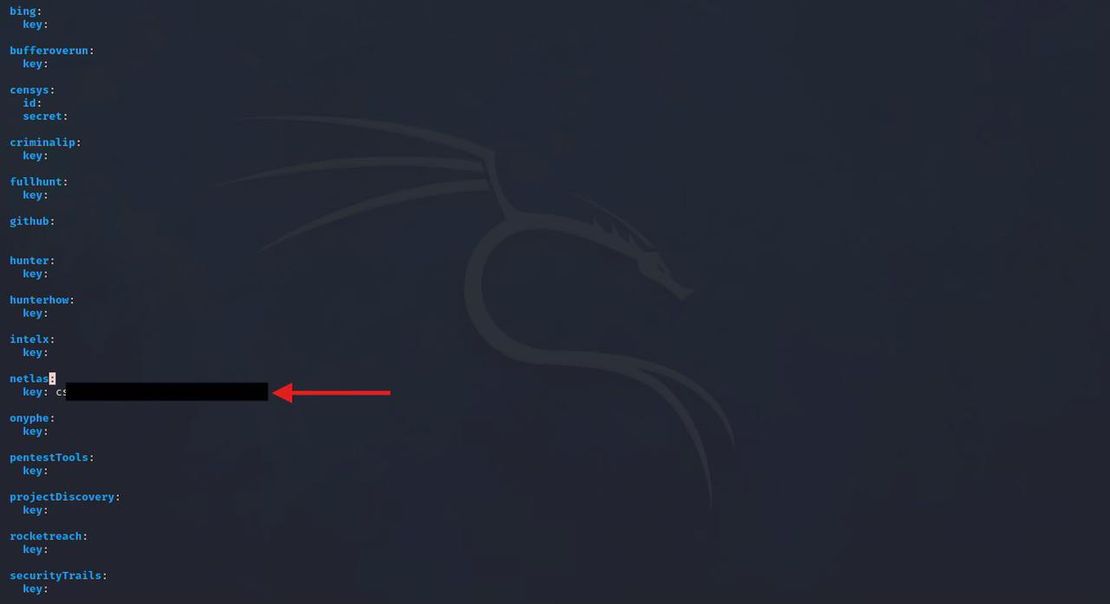

   • Open the file in a text editor and find the section related to the Netlas API key. Paste the copied key from your Netlas profile.



Using theHarvester with the Netlas Module

Let’s look at the code that enables theHarvester to interact with the Netlas API:

class SearchNetlas:
    def __init__(self, word, limit: int) -> None:
        self.word = word
        self.totalhosts: list = []
        self.totalips: list = []
        self.key = Core.netlas_key()
        self.limit = limit
        if self.key is None:
            raise MissingKey('netlas')
        self.proxy = False

    async def do_count(self) -> None:
        """Counts the total number of subdomains

        :return: None
        """
        api = f"https://app.netlas.io/api/domains_count/?q=*.{self.word}"
        headers = {'X-API-Key': self.key}
        response = await AsyncFetcher.fetch_all([api], json=True, headers=headers, proxy=self.proxy)
        amount_size = response[0]['count']
        self.limit = amount_size if amount_size < self.limit else self.limit

    async def do_search(self) -> None:
        """Download domains for query 'q' size of 'limit'

        :return: None
        """
        user_agent = Core.get_user_agent()
        url = "https://app.netlas.io/api/domains/download/"

        payload = {
            "q": f"*.{self.word}",
            "fields": ["domain"],
            "source_type": "include",
            "size": self.limit,
            "type": "json",
            "indice": [0]
        }

        headers = {
            'X-API-Key': self.key,
            "User-Agent": user_agent,
        }
        response = await AsyncFetcher.post_fetch(url, data=payload, headers=headers, proxy=self.proxy)
        resp_json = json.loads(response)

        for el in resp_json:
            domain = el["data"]["domain"]
            self.totalhosts.append(domain)

As shown in the integration code, Harvester uses the Netlas API to retrieve domains based on a query. The process begins with the do_count() method, which returns the number of subdomains identified by Netlas. Next, the do_search() method is used to download these subdomains.

The limit parameter plays a critical role in this process, as it determines the maximum number of results that can be returned in a single query. The do_count() method utilizes the count API call, while do_search() relies on the download API call.

A key advantage of the download method is its ability to handle streaming data, allowing users to retrieve results in any quantity. This enables users to access all subdomains identified by Netlas, making it a powerful tool for comprehensive domain analysis.

Usage Example

Let’s explore a command for searching subdomains using the Netlas module:

theHarvester -d target.com -b netlas

This command instructs theHarvester to gather open-source information about the web application target.com and its associated subdomains using Netlas as the data source.

Breaking Down the Command:

theHarvester: The tool itself, designed for collecting OSINT data.

-d target.com:

• -d: Specifies the target domain.
• target.com: The domain to investigate. This domain is often used as a training ground for penetration testing due to its vulnerable web applications.

-b netlas:

• -b: Indicates the data source to use.
• netlas: The specific database from which to pull information.

Here’s command executing results:

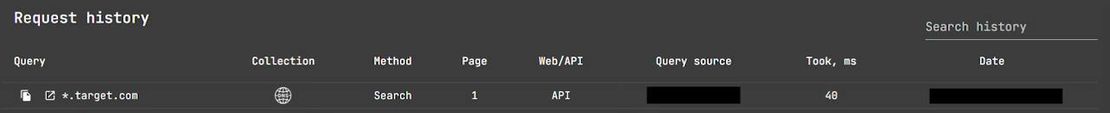

After running theHarvester -d target.com -b netlas, you can check the search history in your Netlas account to view the query that theHarvester executed:

Conclusion

theHarvester offers extensive coverage across various information sources, including search engines, social networks, and databases. By integrating with the Netlas API, it gains access to detailed data about domain names and network devices, providing deeper insights into infrastructure. Netlas is particularly effective in identifying IoT devices and other network components that might be overlooked by other tools.

Together, theHarvester and the Netlas API form a powerful OSINT toolset, enhancing your ability to conduct thorough research and analysis.
